Donut View in SharpCloud

Note: Parts of this feature are only available in SharpCloud v9.2.0226 and later.



Overview

Donut View provides a clear and visually engaging way to summarize and compare items or groups of items. It is commonly used to display proportions, totals, and distributions.

Only numeric attributes (including calculated values) and properties such as item count can be visualized in a Donut View.

Types of Donut Charts

Main Chart

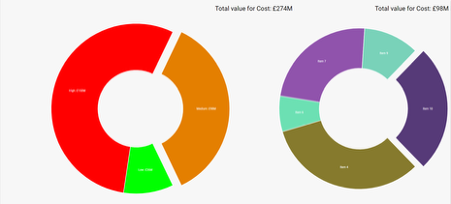

The main chart (on the above left) displays items as segments of a donut. By default, items are grouped by category, with the total value shown in the upper right corner.

You can:

• Group items by category or another attribute
• Set the Value to a numeric attribute or property (such as relationship count)

Secondary Chart
The secondary chart (on the right) appears when a segment of the main chart is selected. It shows the items that make up that segment, allowing you to drill down into the data.

A different numeric attribute can be displayed in the secondary chart if required.



View Setup Options

These settings apply to both main and secondary charts:

Value
Select the numeric attribute or property to display.

Order By
Sort segments by None (alphabetical), Value Ascending, or Value Descending.

Show Labels
Display value labels on each segment.

Hide Chart Total
Hide the total value shown in the top right corner.



Main Chart Settings

Group By
Choose how items are grouped. By default, items are grouped by category, but other attributes can be selected.



Secondary Chart Settings

Background Color
Set segment colours using category, an attribute, or a custom colour.

Value
Choose a different numeric attribute for the secondary chart if needed.
