Timeline View

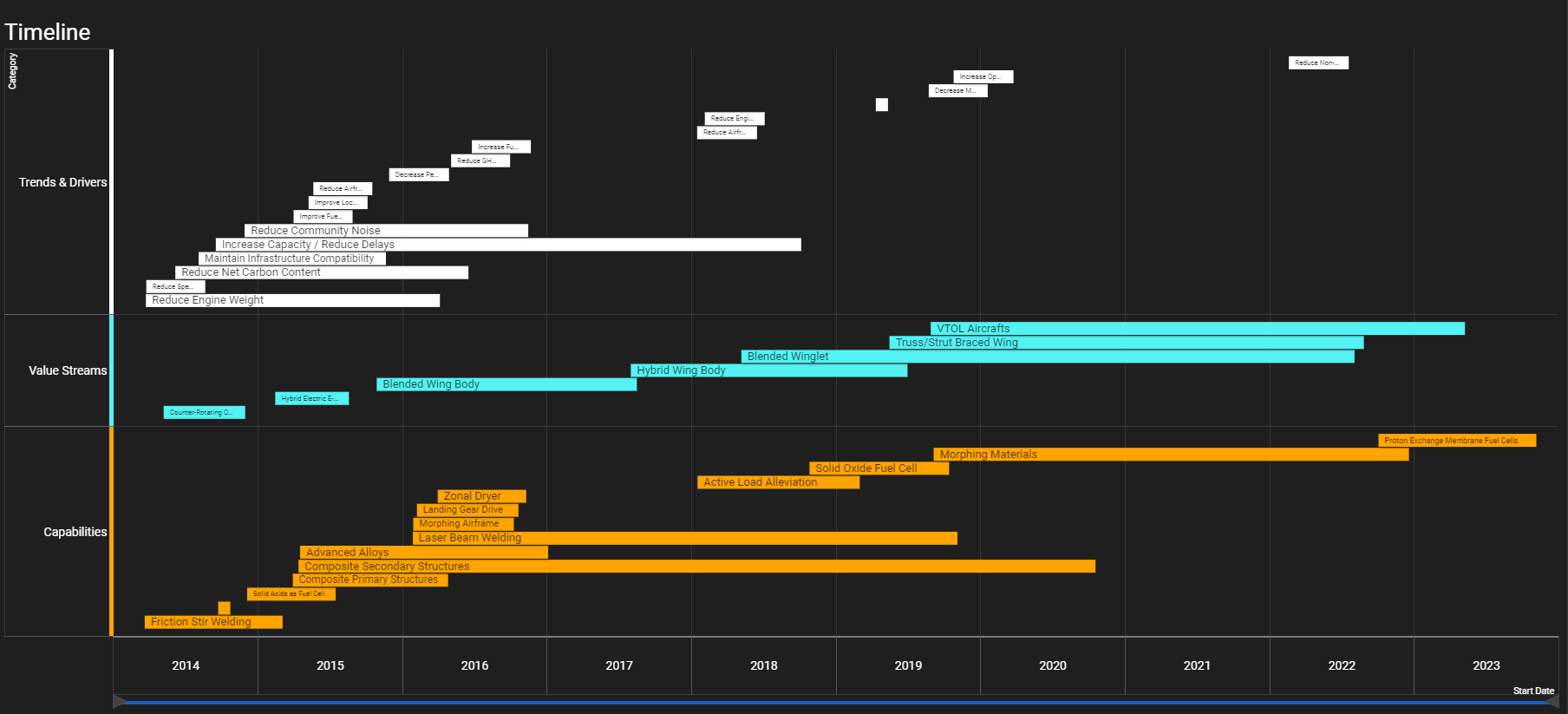

The Timeline view is a versatile and widely used feature suitable for a range of use cases. It provides an effective way to create Gantt-style visualisations with clear dependencies and milestones, enabling users to communicate strategy, plans, and future roadmaps with clarity.

The Timeline view can be configured to scroll, enabling more complex timelines to be displayed while maintaining clarity and readability.



Timeline View Options Summary

Setting	Description	Tab	Advanced Toggle Active?
Start	Select the date attribute used as the start date for items.	Layout	No
End	Select the date attribute used as the end date for items.	Layout	No
Layout	Defines item ordering, from manual arrangement to chronological (earliest to latest start date).	Layout	No
Scale	Sets the X-axis scale (Auto, Years, Quarters, Months, Weeks, or Days).	Layout	No
Row Height	“Fit to View” displays all items in one view; when disabled, enables scrolling based on a set height.	Layout	No
Show Milestones on Top	Displays milestone items (single date) above overlapping items.	Layout	Yes
Timeline Markers	Configure timeline markers (see Timeline Marker KB article).	Layout	Yes
Column Colours	Alternates column colours to improve accessibility and readability.	Theme	Yes
