How To Customize your CAWI Survey using Branding

Overview

This guide describes how to customize your CAWI survey using the Branding tab under the Web Properties.

The Branding controls the Logos, Right/Left Pane, Top/Bottom Panes using the STG editor and HTML editor.

Steps

1. Open the survey you would like to customize

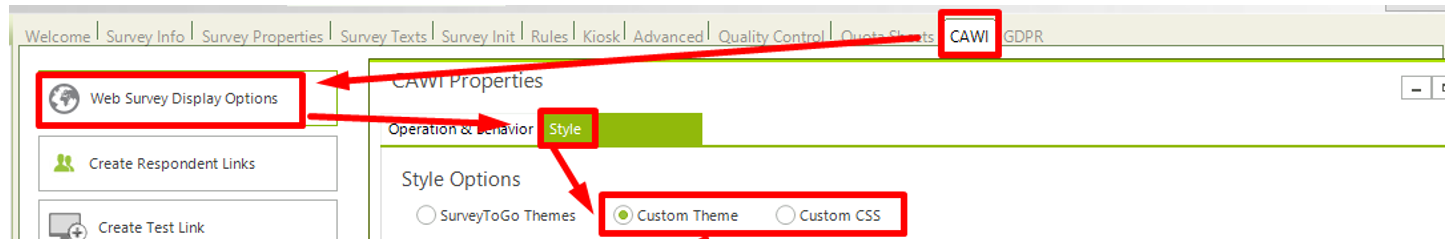

2. Navigate to 'Survey' Root -> CAWI tab -> 'Web Survey Properties' -> Style -> Custom Theme or Custom CSS options

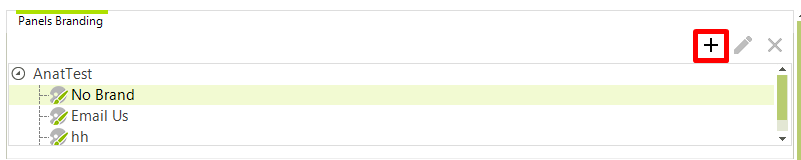

3. Under the 'Panels Branding section click on + to create a new Logo

4. Start customizing your brand -

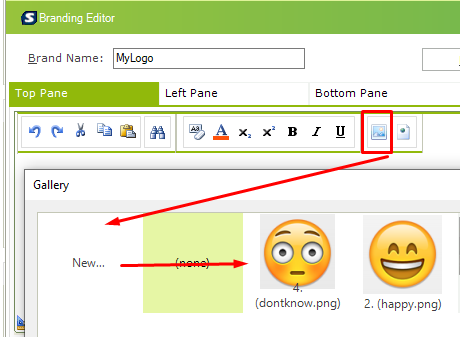

   • Add a Logo either by adding an image
     • Adding an Image

     • Adding an attachment source

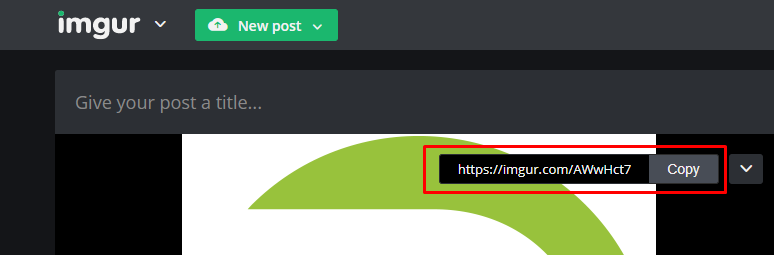

     • Navigate to the website where you save the image and copy the link where your image is saved
       ​

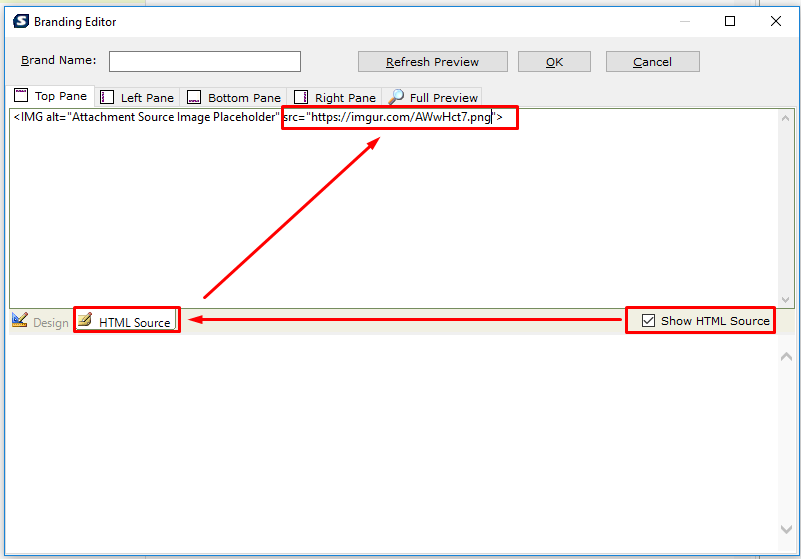

     • Click on the 'Show HTML Source' and navigate to the HTML Source Tab - paste the link you copied in step 3 into the src="" and at the end add your image extension jpg, png, bmp etc. (my example is '.png')


     • Once done go back to the Design tab to see that the image was added and click 'OK'


   • Please Note:

     1. To create an empty Logo repeat steps 1 and 2 without adding any image.
     2. You can upload several logos and for each survey use a different one
        • Upload the logos as described above
        • Choose the logo you would like for your survey

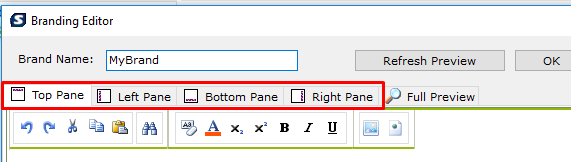

   • Choose the Pane you would like to customize - Top / Bottom /Left /Right
   •

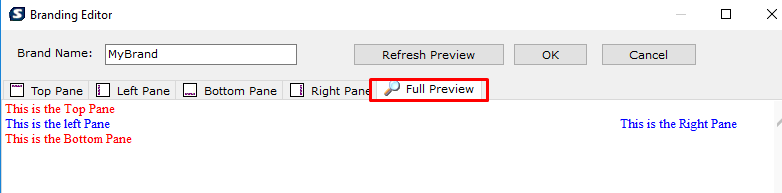

   • Use the Full Preview to watch your customization

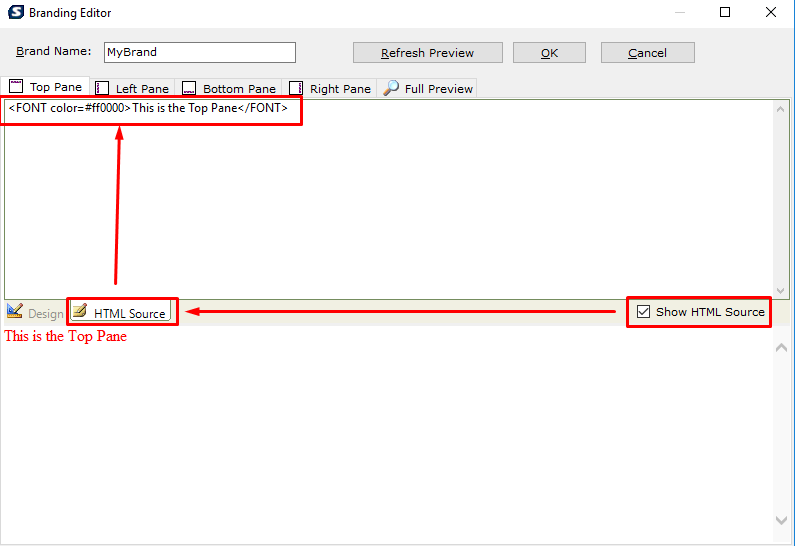

   • Use the 'Show HTML Editor' and navigate to the 'HTML Source' to edit your HTML (Click Design when done to save changes).
