Concept maps (NVivo 15 Mac)

Concept maps let you visualize ideas, relationships, and patterns using shapes and connectors; you can add project items, attributes, and edit freely.

Apr 1, 2026
Knowledge

Title

Concept maps (NVivo 15 Mac)

Answer

Concept maps (NVivo 15 Mac)

You can use a concept map to map out your ideas or to explore and present the connections in your data. Use shapes and connectors to visualize the evolution of your ideas and theories.

A concept map is a free-form visualization made up of different shapes and connectors.

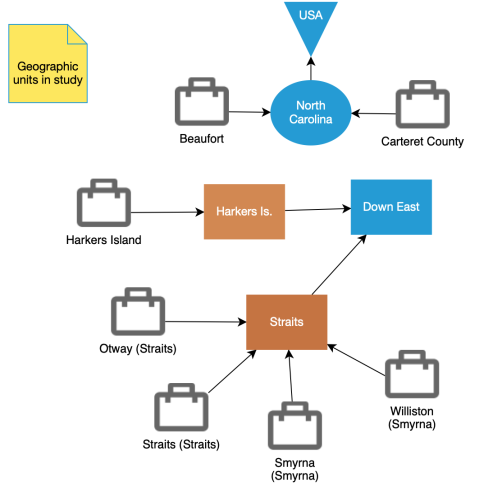

Example of a Concept Map.

Shapes represent concepts (ideas, people, or data). The connectors between the shapes articulate links such as this causes..., this requires... or this contributes to....

To get started with a concept map, try one of the following approaches:

Identify a list of related concepts. Put them on shapes and move them around the canvas to get a sense of grouping and order. What else might be associated with them? Add additional items. Connect each concept to show associations.
Take something you've already written and try to map it.
Try visualizing how you see a case. Add different shapes to the map to represent what impacts or is impacted by the case.

You can add project items to concept maps to help build your diagram.

Your map doesn't have to be complete to start with. As you gather data, add project items to your concept map to flesh out your visualization and help you with your analysis. A good way to see if you are on track is to have colleagues check your diagram—can they interpret it?

When you create concept maps, save an image in your project journal and record your observations and insights.

When should I create a concept map?

At this stage of your project	Create a concept map to
Early on	Create a diagram of the concepts, connections and patterns you expect to find. Show your planned action and the expected results.
During analysis	Divide variables that are conceptually or fundamentally distinct. See if there are conflicts. What are you struggling to place? Draw possible links between concepts. Confirm you have data to support every linkage you have drawn. Establish a sequence of consequential steps. Ask what had to come before or what followed after each step.
Developing theory	Visualize theoretical connections in your data. Prompt analytic reflection. Develop causal hunches—If this happened, it must have been because... Show things that had to be in place for an outcome to occur.
Presenting results	Condense all that you have learned into a restricted space and identify what's important in what you have found. Convey information whilst saving word count for results.

Examples of concept maps

Concept maps are very flexible and can be used for a variety of purposes. For example, you might make a concept map to:

Record theoretical groups of the categories and concepts contained in your research question.
Sketch the relative locations of sites, events or people in your project, as observed by yourself or described by others.
Demonstrate your theory about a pattern or pathway.
Sum up the key elements of a process you have identified.
Draw a timeline to show historical development of a situation or sequence of events.
Map the logic used by a participant for the decisions they've made.

Working with concept maps

To make changes to a concept map, make sure you are in edit mode. Click the Edit option at the top of Detail View.

The concept map canvas

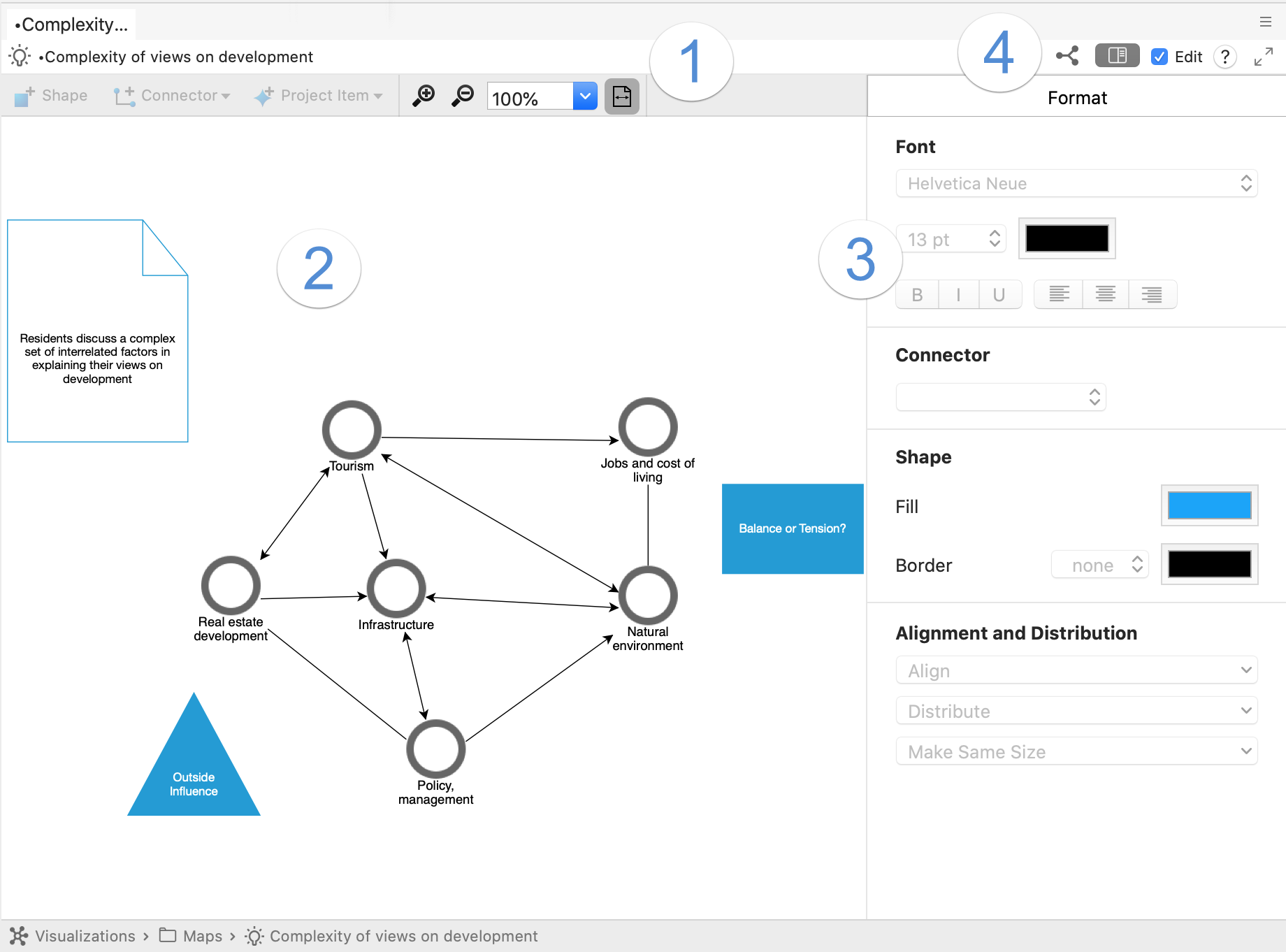

1Add shapes, connectors or project items to the Concept map. Project items are shapes representing existing project data. For example, add two cases from your project and draw a connector to show the association between them. Open a case to see all the coded content. You can also drag and drop from List View to add project items to the canvas.

2Drag shapes to move them around the canvas. You can zoom in or out using the magnifying glasses at the top of Detail View and use the horizontal and vertical scroll bars to move around the map.

3Use the Format panel to set the way selected shapes or connectors are displayed.

4Choose options for sharing, editing and expanding the concept map. You can also hide the Format panel. Hover over each option to see a description.

TIP To make more room when you're working with maps, click the Expand icon on the top right of Detail View to display the concept map in full screen.

Create a new concept map

On the Explore tab, in the Maps menu, click Concept Map.
In the Name box, enter a name for the mind map.
Add shapes or items by doing the following:
- Click the Shapes button and choose a shape.
- Add project items to the map by clicking and dragging from List View.
Connect shapes or items by doing the following:
1. Click Connector and choose a connector type.
2. Click and drag from one shape or project item to another. An arrow connects the shapes in the direction you dragged.
3. Double-click in a shape to edit the text.

Add project items to a concept map

Make sure you are in edit mode.
At the top of the Detail View, click Project Item and then select Items...
On the left, click the folder name that contains the project item you want to add.
On the right, select the check boxes for the project items you want to add to the map.

Add attributes and attribute values to a concept map

Make sure you are in edit mode.
At the top of the Detail View, click Project Item and then select Attributes and Attribute Values...
Select the attribute or attribute value you want to add and click Select.

NOTE

You can use keyboard shortcuts to work with maps.
If you want to change a map, you must be in edit mode. Click Edit at the top of the Detail View.
Project Items are not live to the data—for example, if you rename an item in your project, the update is not reflected in the map.
If you delete a project item from the concept map, it is removed from the map but remains in the project.
