Matrix coding query (NVivo 14 Windows)

Matrix coding queries enable you to see coding intersections between two lists of items.

You can use matrix coding queries to ask a wide range of questions about patterns in your coded data and gain access to the content that shows those patterns.

For example—depending on how you coded your data, you could compare Positive and Negative attitudes towards different themes:

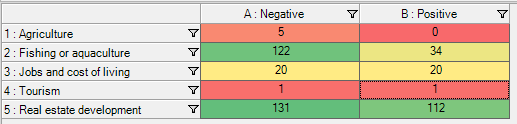

Example of Matrix Coding query showing positive and negative sentiment about a collection of themes.

Or compare what different cases have said about an issue:

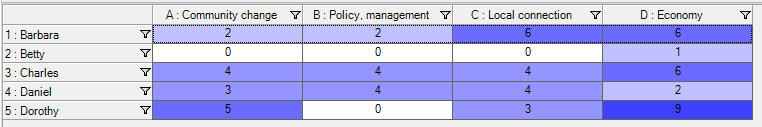

Example of Matrix Coding query showing positive and negative sentiment about a collection of themes.

You could also explore how terms are used in different contexts. For example, what do people say about Habitat in relation to the Economy?

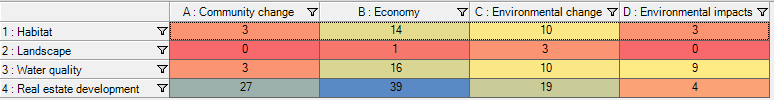

Matrix coding query results showing how different terms are used.

Refer to Queries & visualizations (NVivo 14 Windows) for more ideas about how you can use matrix coding queries to explore your data.

The resulting coding matrix can be saved in your project as a query result or with your codes in the Coding Matrices folder.

When you are working with a coding matrix, you can:

Open a code from a matrix cell to see all the content coded to the cell (at both the row and column codes)—double-click on a cell to open the code.
Apply shading to cells to make it easier to see patterns in the matrix
Change the information displayed in the matrix cells—for example number of files coded or number of codes coded
Filter or sort the matrix
Transpose the columns and rows

If you want to view the matrix as a chart, click the Chart tab. You can make changes to the chart type, title, labels, gridlines, and rotation.

Create a matrix coding query

If you are not familiar with NVivo queries the Query Wizard can help guide you. Note, however, that the Query Wizard does not include all the options for all queries.

Using the wizard

On the Explore tab click Query Wizard.

The Query Wizard opens:

Wizard step	Description
Choose the query you want to run.	Click Find coding intersections between two lists of items.
Define the rows and columns for your matrix.	Click Add Selected Items to add a row/column that represents a specific code, file, case or other project item. For example, you could add a row/column that represents a thematic code or content coded to cases with the attribute value female. Click Add Attribute Condition to add a row/column that represents all the files or cases that meet specific attribute value criteria. For example, you could add a row/column that represents all cases where the attribute value for age is greater than 40.
Choose where you want to search.	Choose whether you want to search text in all your files, or restrict the search to selected items or folders.
Choose whether to add the query to your project.	You can run the query once or choose to add it to your project (and run it). If you choose to add it to your project, you must enter a name. You can optionally enter a description.

Click Run.

Outside the wizard

On the Explore tab click Matrix Coding Query.

Description of Matrix Coding query criteria.

1To limit the scope of the query, choose Selected Items or Selected Folders. For example, you could search only the files in your Interviews folder.

2When looking for coding co-occurrence (where content is coded to the intersection of two codes) you would typically use the AND search operator. However, you could choose a different search operator for the lists of items. For example, search for content coded to Tourism where it is NEAR content coded to Water Quality. You can also show or hide the hierarchical name of an item to simplify the query results.

3Add items to the Rows panel, drag and drop them from List View or click the plus sign.

4Add items to the Columns panel, drag and drop them from List View or click the plus sign.

5Click an icon on the bottom right of the Rows or Columns panel to:

Specify how sets should be handled. For example—query a whole set, or split the set into separate items.
Query the coding done by a selected users. For example, include only your coding in the scope of the query.
Reorder selected items in the list.

6Click Run Query. You can click the arrow to automatically save the results or you can click Save Results after running the query.

NOTES

To save query settings so you can run a query again later, click Save Criteria. Name the query criteria file and optionally add a description. The file is saved under Queries / Query Criteria in the Navigation View.
If you include an 'aggregate' code in the scope of a query, content coded to the code and all its direct children will be included in the query results.

When the query has finished running, the results are displayed as a temporary preview in Detail View.

Save the preview results as a coding matrix

You can save the preview results as a coding matrix in your project—either in the Results folder or Coding Matrices folder. This is useful when you want to keep a record of the coding in your project at a particular point in time.

Click on the query results in the Detail View.
On the Matrix tab, click Store Query Results.
Enter a name and description.
Click OK.

NOTE

By default new coding matrices are created in the Results folder, unless you choose another location.
You can choose to save the results in your project before you run the query—by setting your preferences on the Query Options tab in the Matrix Coding Query dialog box.
